Genyu Blue color lcd Module 12864 Dot Graphic Display 128x64 LCD COB

FOB Reference Price:Get Latest Price
$4.00 - $6.50 / Piece | 1 Piece/Pieces (Min. Order)
Type:
Graphic LCD Display
Supplier Type:
Original manufacturer
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100000 >100000
Est. Time(days) 7 20 Negotiable
Customization:
Color (Min. Order: 500 Pieces)
LCD customization (Min. Order: 500 Pieces)
Samples:
$6.50 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Genyu
Model Number:
GY12864K
Display Size:
128x64 Blue COB
Product Name:
128x64 LCD COB
Color:
Blue
LCD Type:
STN (Blue)
Display mode:
COB
Dot Matrix:
128x64
Viewing Angle:
6 O'clock
Operating voltage:
4.5~5.5V (VDD)
PIN:
10 pins
Size:
78x70x12.2 mm
Active Area:
62x44 mm
Supply Ability
Supply Ability:
1200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Electrostatic bags and professional packaging boxes
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100000 >100000
Est. Time(days) 7 20 To be negotiated

Genyu Blue color lcd Module 12864 Dot Graphic Display 128x64 LCD COB

Related products

Product Description



Model Number: GY12864K   ( COB=Chip On Board ) With PCB=Printed Ciruit Board

Regular size, standing stock.



NO.ITEMSPECIFICATIONS
1 Module Size78x70x12.2 mm
2 Viewing Area62x44 mm
3 Dot Size0.05×0.05
4 Dot  Pitch0.55X0.39
5 Dot Matrix128×64 Dot
6Operating voltageVDD 4.5~5.5V
7Operating temperature0~60℃

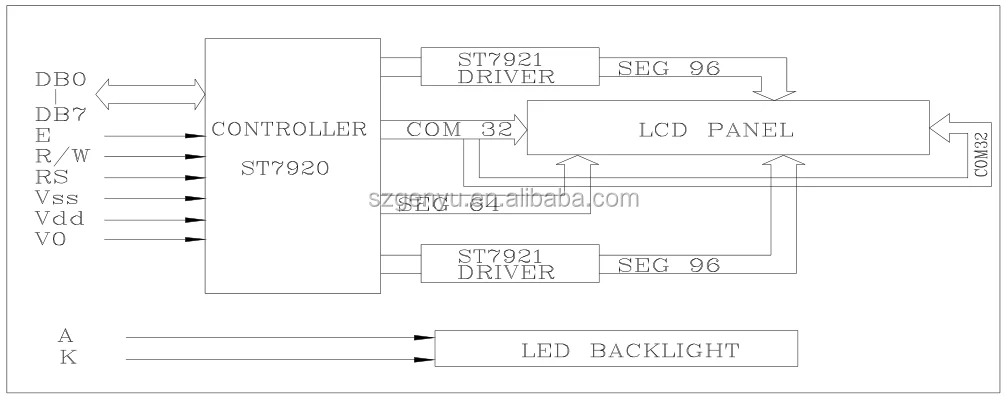

Pin No.SymbolFunction Description
1VSSGND (0V)
2VDDSupply Voltage For Logic (+5v)
3V0Supply Voltage For LCD
4RS (CS)H: Data L: Instruction Code
5R/W (SID)H: Read L: Write
6E (SCLK)Enable Signal
7DB0-DB3Data

128x64 COB.png

12864 Dot LCD.png

12864 COB LCD Module.jpg

12864 COB LCD Display.jpg

Company Information

Genyu lcd screen

        Own lcd glass line.
        5 COB Module product lines.
        7 COG automatic lines and one semi-automatic line.
        TN, HTN ,STN ,FSTN ,DFSTN ,FFSTN ,VA .
         Customizable dimention,Backlight ,connector, PCB.
        More than 10 years of technical experience.
         Fast delivery time.

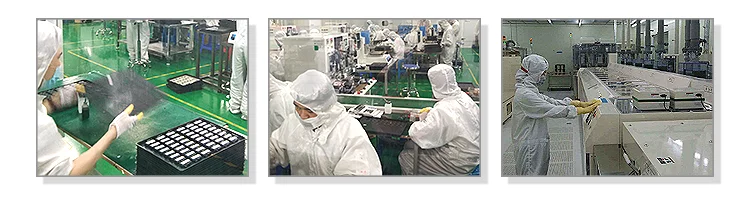

2Company-Profile_03



    Shen Zhen Genyu Optical Co.,Ltd.10 Years of Production Experience,We can design, develop and produce customized LCD, LCM,B/L, FPC and PCB board. We currently produce LCD,OLED and TFT lcd Module and Touch screen.
    Shen Zhen Genyu Optical Co., Ltd. (established in 2003, the main investment direction is small and medium-sized LCD display LCD and its extension related products. Development so far,Genyu already has two factories in China, one is in Shenzhen, the other in DongGuang Province).

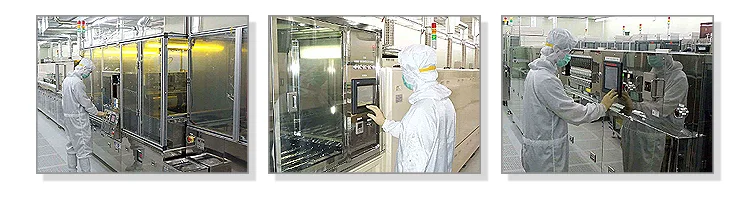

1Factory-Display03Blue Screen 12864 Dot Graphic LCD Display 12864 COB LCDBlue Screen 12864 Dot Graphic LCD Display 12864 COB LCD

Packaging & Shipping

Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....

Delivery
Items will be shipped within 3 working days on payment received.

By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.

Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.

lcd screen.jpg

Our Services

Genyu Technology (H K) Limited
Shen Zhen Genyu Optical Co.,Ltd



1.  And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.



2.  Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.



3.  When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.



4.  The warranty period of the product is 12 months.
